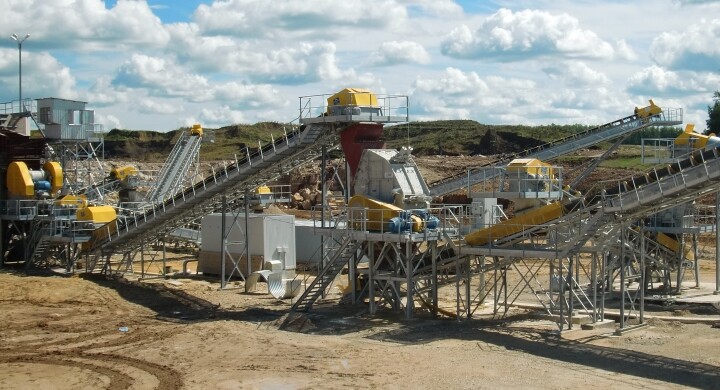

Limestone crushing plant 450 t/h

Main equipment: DCJ 1029 jaw crusher, ODH 1616-22 and ODH 1110-23 impact crushers, 2400x7000/3 and 2400x6000/3 vibrating screens

Input material: limestone fraction 0 - 1000 mm

Output product: fraction 0 - 5 mm, 5 - 20 mm, 20 - 40 mm, 40 - 70 mm, 40 - 120 mm, 70 - 120 mm

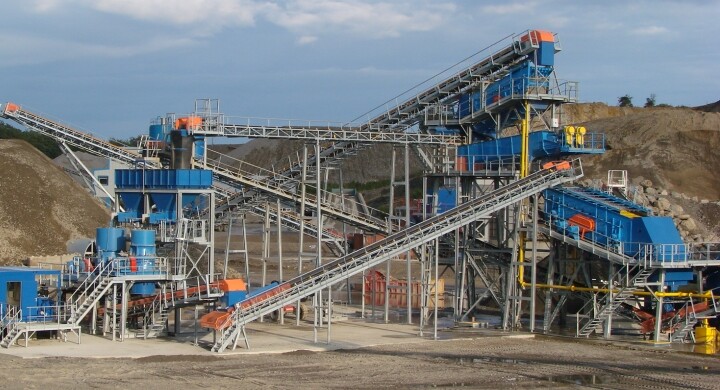

Gravel crushing plant 300 t/h

Main equipment: DCJ 1021 jaw crusher, KDC 23 HP and KDC 35 FP cone crushers, 2500x7000/3, 2100x6000/3 and 2100x5000/3 vibrating screens

Input material: gravel 700 mm

Output product: fraction 0 - 3 mm, 3 - 5 mm, 5 - 8 mm, 8 - 14 mm, 14 - 22 mm

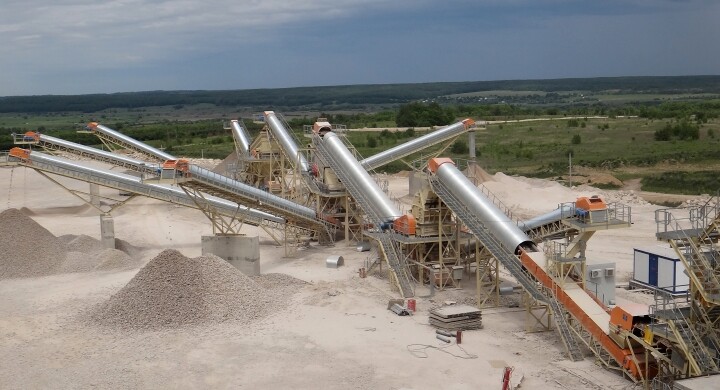

Limestone crushing plant 600 t/h and limestone grinding plant 35 t/h

Main equipment: DCJ 1029 jaw crusher, ODH 1623-22 impact crusher, 3x18 m drum dryer, PM 800 PREMILL, 1010x1350/4 vibrating screen, 2500x2400/4 vibrating screen, 2 x PRESEP VTP 800 separator

Input material for the crushing plant: limestone fraction 0 - 1000 mm

Output product of the crushing plant: limestone fraction 0 - 5 mm, 5 - 10 mm, 10 - 20 mm, 20 - 40 mm, 40 - 70 mm, 70 - 120 mm

Input material for the grinding plant: limestone fraction 0 - 5 mm, 5 - 20 mm, moisture up to 12%

Output product of the grinding plant: fraction 2.5 – 5.0 mm; 1.5 – 2.5 mm; 0.5 – 1.5 mm; 0.17 – 0.5 mm; 0.063 – 0.17 mm; 0 – 0.063 mm

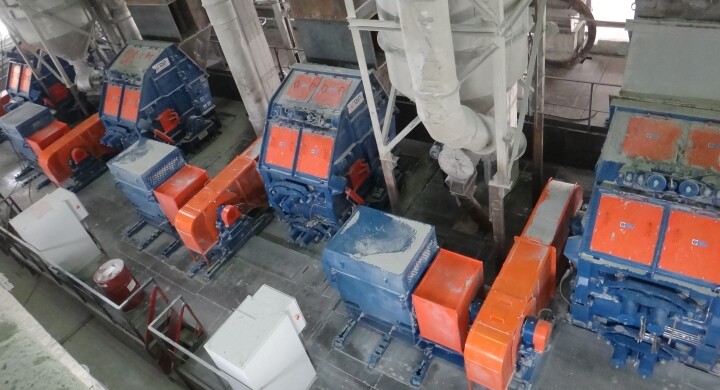

Serpentine crushing

Main equipment: 3 x 1616-23 impact crusher, 4 x ODH 1316-23 impact crusher

Input material: serpentine

Output product of ODH 1616-23: 0 - 40 mm 90%, capacity 3 x 350 t/h

Output product of ODH 1316-23: capacity 4 x 300 t/h

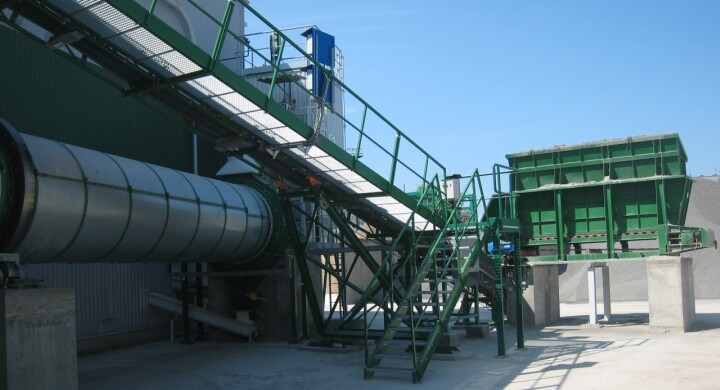

Granite crushing and drying plant 3 t/h

Main equipment: PSG 900 feeder, drum dryer, VTR 1500 S air separator, belt and screw conveyors, combustion chamber, flaps, filters, fans, elevator, pneumatic transport

Input material: granite powder fraction 0 - 1 mm, moisture 10 - 12 %, max. 20 %

Output product: fineness 90 % under R0.063 mm, max. 1% H2O

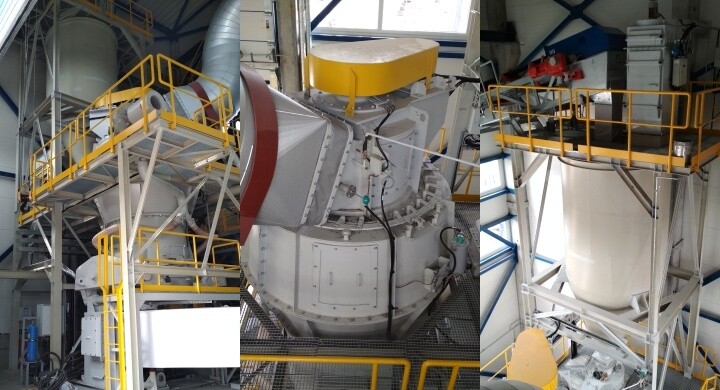

Dolomite grinding plant

Main equipment: KTM 1600 vertical mill with DTIM 1650 dynamic separator

Capacity: 20 t/h

Input material: dolomite fraction 2 - 22 mm, moisture max. 5%

Output product: fineness max. 30% R0.063 mm, moisture max. 1%

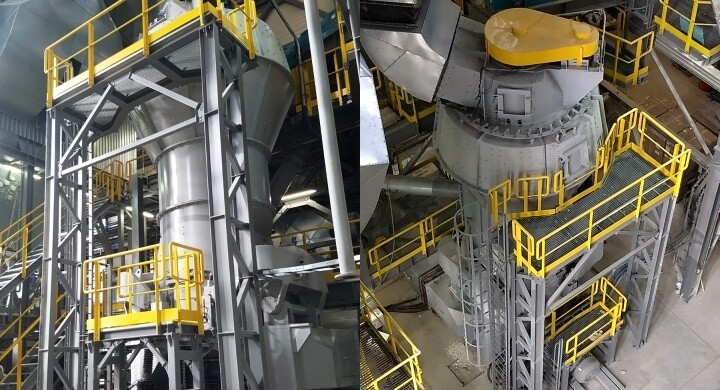

Limestone grinding plant

Main equipment: KTM 1900 vertical mill with DTIM 2000 dynamic separator

Output product 1: capacity 20 t/h, fineness 0-0.1 mm

Output product 2: capacity 20 t/h, fineness 0.1-2.0 mm
